抓取懂车帝车型数据

抓这个数据的原因有两个

做数字钥匙相关的业务需要建立一个标准车型库
对接的是三方接口，每拉取一次要花费100多块钱

所以为了节省成本，以及最大程度的确保数据的准确性，选择抓取懂车帝数据。

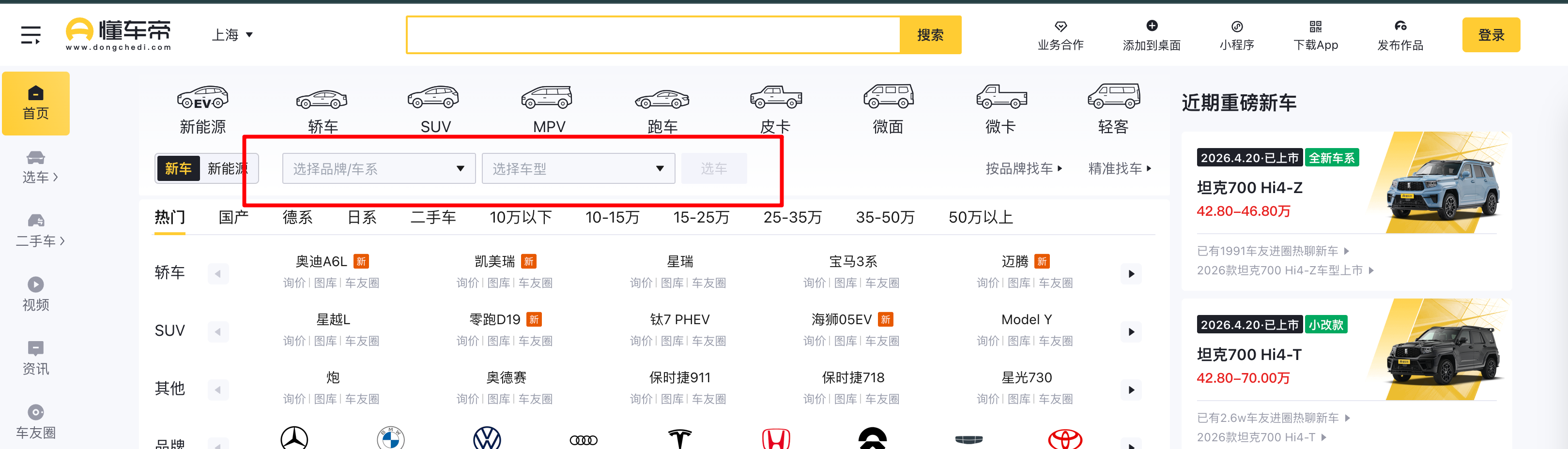

alt text

排查思路

懂帝车型数据

是否通过ajax来获取的数据
是否拿到数据之后存在了localStorage中

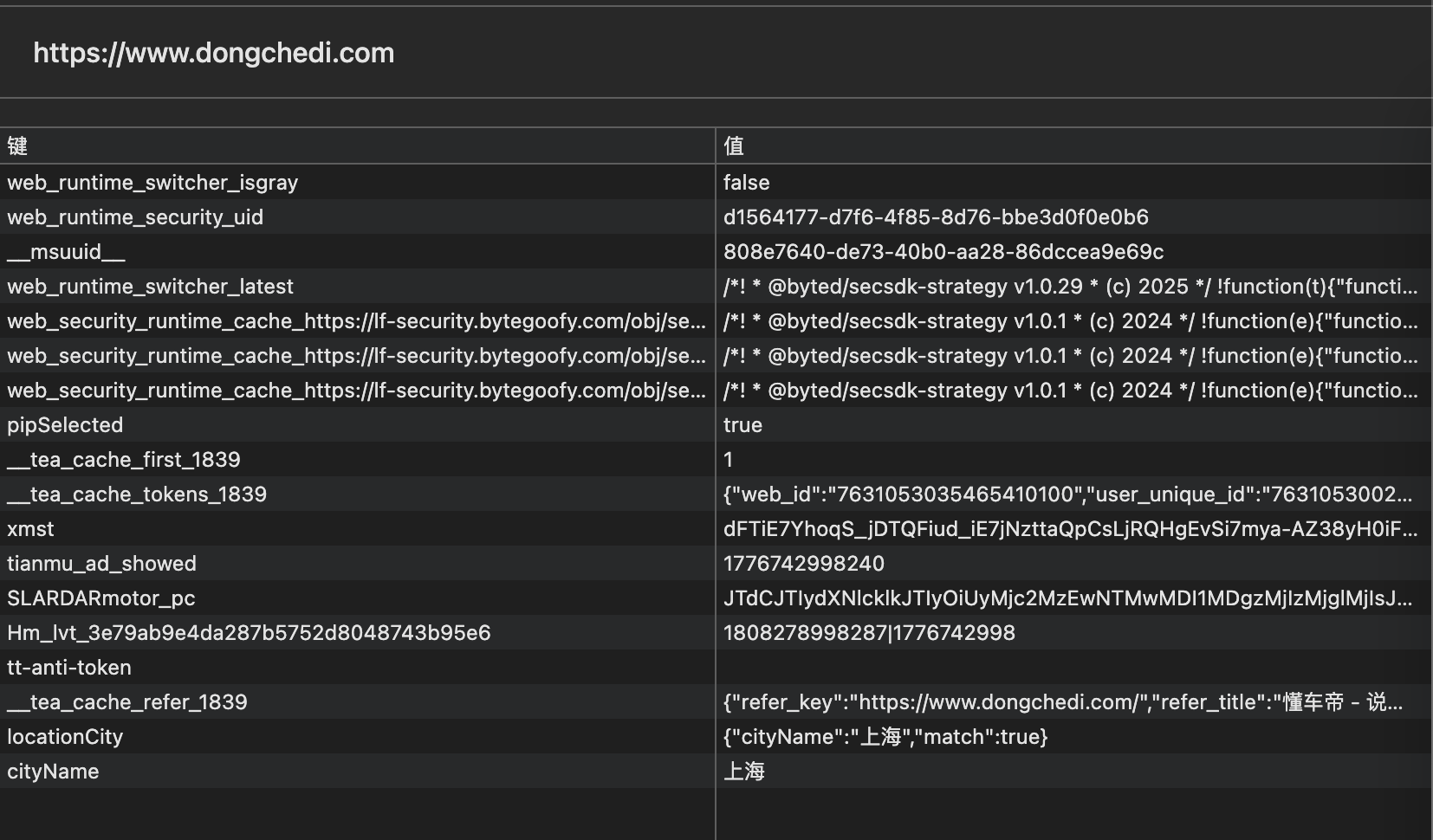

localStorage

alt text

很显然没有，压根找不到车型的一条数据。

Ajax 来获取数据

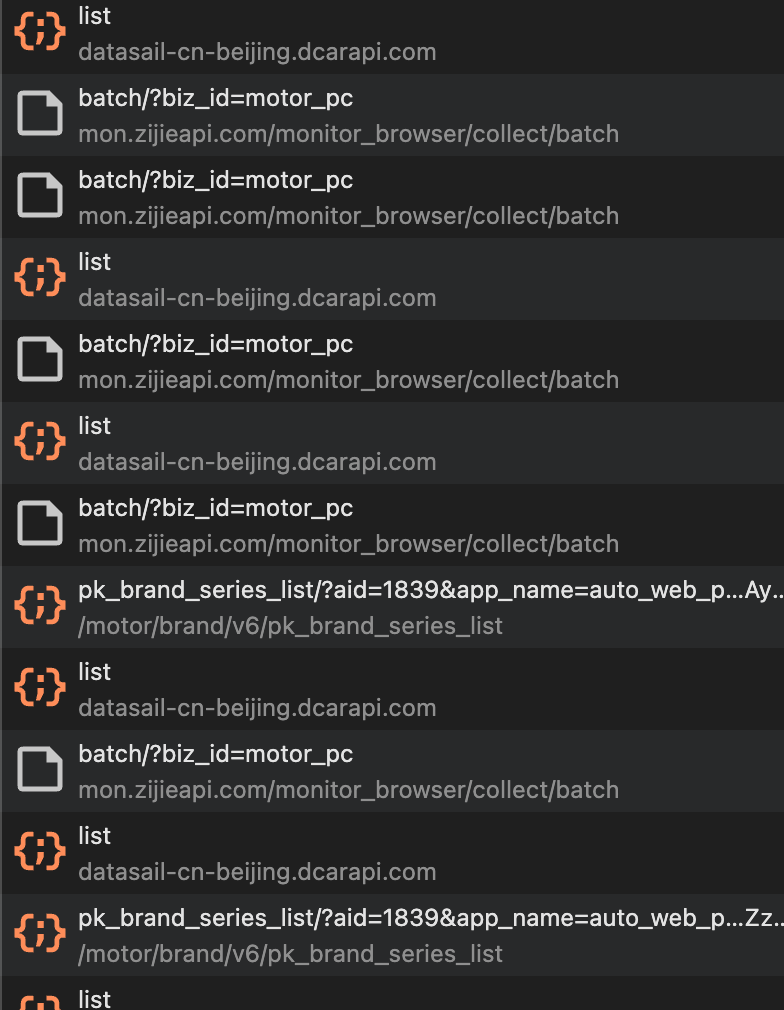

找了一圈发现也没有完整的数据 alt text

模拟用户点击获取数据

通过找规律发现

用户点完选择完品牌,会立马把品牌列表清空，
当前输入框下拉框出现车系选择框
然后才能点击车型选择框。

具体实现

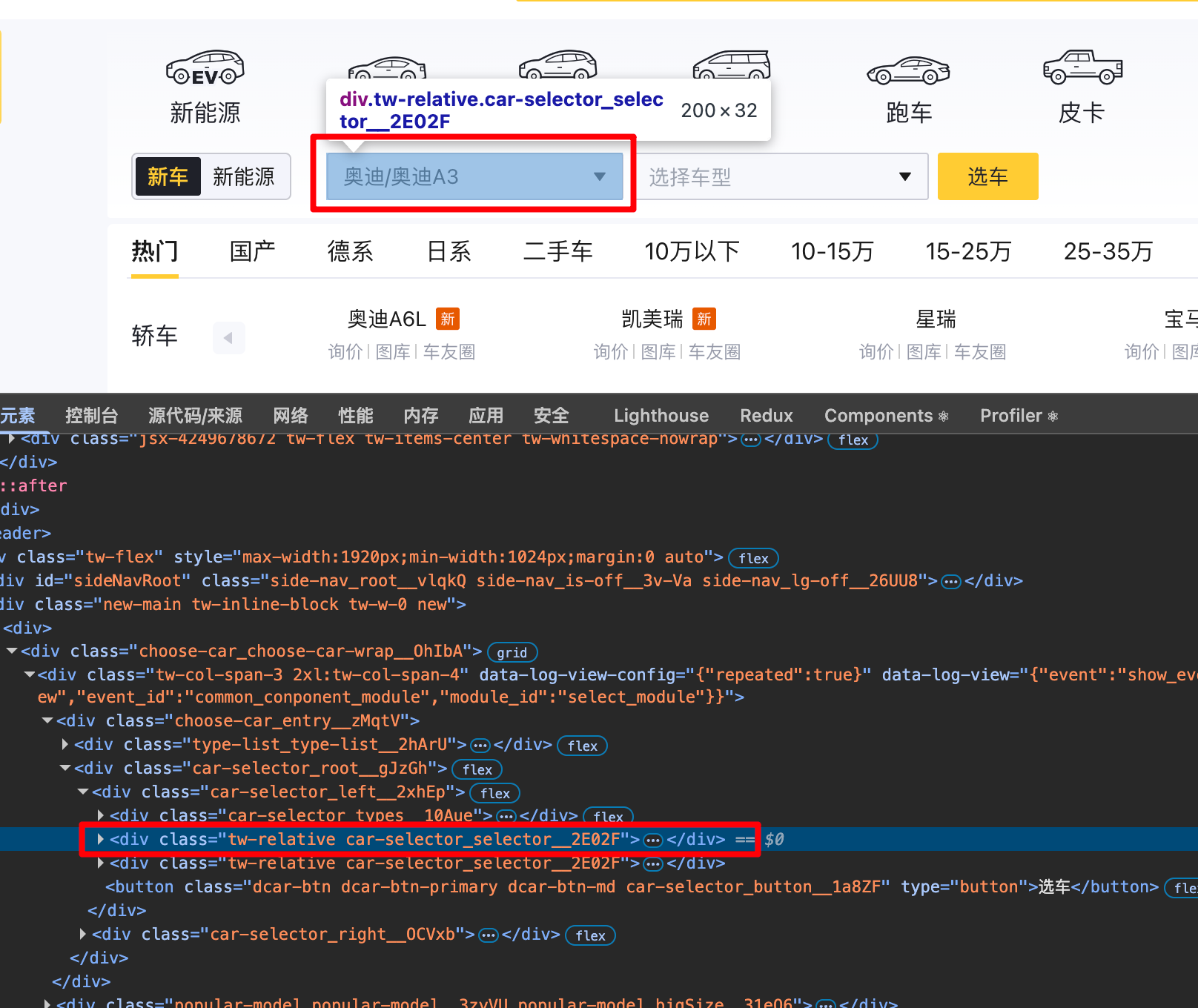

STEP1 找到品牌+车系输入框

alt text

STEP2 模拟用户点击品牌、车系

  let brandIndex = 0;
  let SLEEP_TIME = 200
  const brandInput = document.querySelectorAll(
    ".tw-relative.car-selector_selector__2E02F",
  )[0];
  brandInput.click(); // 调出来第一个面板
  await sleep(SLEEP_TIME); // 等待一段时间，等车系选择框出现
  const brandlistLength = document.querySelectorAll(
    ".tool-tip_wrapper__1lKlz .jsx-2401233222.brand-list",
  )[0];
  if (!brandlistLength) {
    await sleep(SLEEP_TIME * 2);
  }  // 等待品牌列表出现完成
  // ----------------分割线----------------
  const brandList = document
    .querySelectorAll(".tool-tip_wrapper__1lKlz .jsx-2401233222.brand-list")[0]
    .querySelectorAll(".jsx-2401233222.brand");
  // 模拟品牌点击
  const brandDomObj = brandList[brandIndex];
  if (!brandDomObj) {
    await saveJson(vehicleDatabase);
    return;
  }
  brandList[brandIndex].click(); // 模拟品牌点击
  await sleep(SLEEP_TIME);
  while (
    document
      .querySelector(".tool-tip_wrapper__1lKlz .jsx-232230372.series-selector")
      ?.textContent?.includes("加载中")
  ) {
    await sleep(SLEEP_TIME); // 等待一段时间，等车系列表出现完成
  }

STEP3 模拟用户点击车型

let SLEEP_TIME = 200
const mockModelInput = document.querySelectorAll(
    ".tw-relative.car-selector_selector__2E02F",
  )[1];
  mockModelInput.click();
  await sleep(SLEEP_TIME);
  // 获取已填入的品牌+车型
  const brandSeries = document
    .querySelectorAll(".tw-relative.car-selector_selector__2E02F")[0]
    .querySelector("input").value;
  vehicleDatabase[brandSeries] = [];
  // 获取车型列表
  const modelList = document
    .querySelectorAll(".tool-tip_wrapper__1lKlz")[1]
    .querySelectorAll("li");
  while (
    document
      .querySelectorAll(".tool-tip_wrapper__1lKlz")[1]
      .innerText.includes("加载中")
  ) {
    await sleep(SLEEP_TIME);
  }
  for (let i = 0; i < modelList.length; i++) {
    // modelList[i].click()
    const modelNamePrice = modelList[i].innerText.replace(/\n/g, "/");
    vehicleDatabase[brandSeries].push(modelNamePrice);
  }
  console.log(Object.keys(vehicleDatabase).length);

STEP4 保存数据到文件(会导致浏览器崩溃)

  const json = JSON.stringify(data, null, 2);
  const blob = new Blob([json], { type: "application/json" });
  const url = URL.createObjectURL(blob);
  const a = document.createElement("a");
  a.href = url;
  a.download = "vehicle-model-data.json";
  a.click();

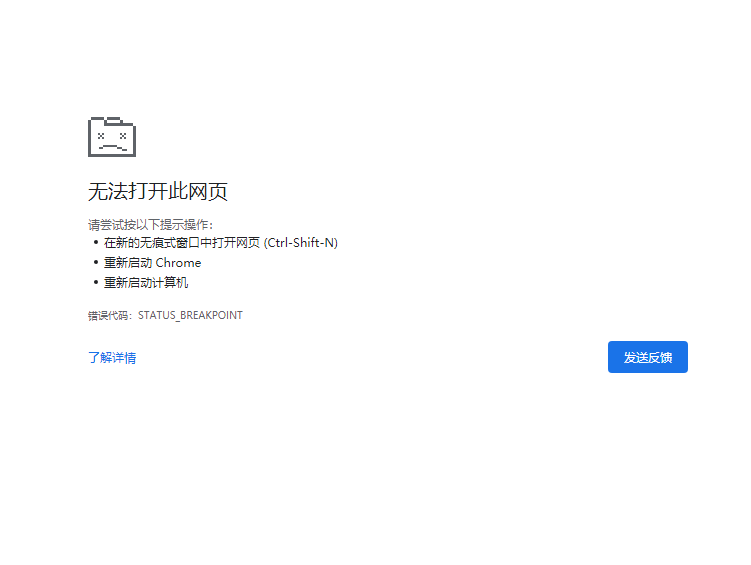

上述代码是跑在 chrome 控制台上，最后爬取下来的数据都会存到一个变量里，所以第一次抓取的时候导致浏览器直接崩溃了。

alt text

使用 HTTP 请求来保存数据

server.js 用来保存数据到本地起的服务

const http = require('http');
const fs = require('fs');
const path = require('path');

const PORT = 3000;
const DATA_DIR = path.join(__dirname, 'data');
const sanitizeFilename = (name) =>
  String(name).replace(/[\\/:*?"<>|／]/g, "_").slice(0, 120);

// 确保数据目录存在
if (!fs.existsSync(DATA_DIR)) {
  fs.mkdirSync(DATA_DIR, { recursive: true });
}

const server = http.createServer((req, res) => {
  if (req.method === 'POST' && req.url === '/save-data') {
    let body = '';

    req.on('data', chunk => {
      body += chunk.toString();
    });

    req.on('end', () => {
      try {
        const data = JSON.parse(body);
        const firstKeyRaw = Object.keys(data)[0];

        if (!firstKeyRaw) {
          res.writeHead(400, { 'Content-Type': 'application/json' });
          res.end(JSON.stringify({ error: 'No data keys found' }));
          return;
        }

        const filename = `${sanitizeFilename(firstKeyRaw)}.json`;
        const filepath = path.join(DATA_DIR, filename);
        const dir = path.dirname(filepath);
        if (!fs.existsSync(dir)) {
          fs.mkdirSync(dir, { recursive: true });
        }

        // 保存数据到文件
        fs.writeFileSync(filepath, JSON.stringify(data, null, 2));

        console.log(`Data saved to ${filename}`);

        res.writeHead(200, { 'Content-Type': 'application/json' });
        res.end(JSON.stringify({
          success: true,
          filename: filename,
          message: `Data saved to ${filename}`
        }));

      } catch (error) {
        console.error('Error processing data:', error);
        console.error('Raw body:', body);
        res.writeHead(500, { 'Content-Type': 'application/json' });
        res.end(JSON.stringify({ error: 'Failed to process data', message: error.message, raw: body }));
      }
    });
  } else {
    res.writeHead(404, { 'Content-Type': 'application/json' });
    res.end(JSON.stringify({ error: 'Not found' }));
  }
});

server.listen(PORT, () => {
  console.log(`Server running at http://10.171.211.77:${PORT}`);
  console.log(`Data will be saved to: ${DATA_DIR}`);
});

module.exports = server;

index.js 模拟用户完整的操作

const sleep = (ms) => new Promise((resolve) => setTimeout(resolve, ms));
let vehicleDatabase = {};
const SLEEP_TIME = 200;
let brandIndex = 566;
let seriesIndex = 0;
const saveJson = async (data) => {
  // 原有的本地保存逻辑
  // const json = JSON.stringify(data, null, 2);
  // const blob = new Blob([json], { type: "application/json" });
  // const url = URL.createObjectURL(blob);
  // const a = document.createElement("a");
  // a.href = url;
  // a.download = "vehicle-model-data.json";
  // a.click();
  try {
    const payload = JSON.stringify(data);
    const response = await fetch('http://10.171.211.77:3000/save-data', {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
      },
      body: payload
    });

    const text = await response.text();  // 先拿纯文本，避免直接 parse 炸掉
    let result;
    try {
      result = JSON.parse(text);
    } catch (e) {
      console.error('后端返回非 JSON:', text);
      throw new Error(`后端返回非 JSON: ${text}`);
    }

    if (response.ok) {
      console.log('数据已发送到云端:', result.message || result);
    } else {
      console.error('发送到云端失败:', response.status, result);
    }
  } catch (error) {
    console.error('发送到云端出错:', error);
  }
};
const task = async () => {
  // tw-relative car-selector_selector__2E02F
  // - 第一个 品牌/车系
  // - 第二盒 车型
  const brandInput = document.querySelectorAll(
    ".tw-relative.car-selector_selector__2E02F",
  )[0];
  brandInput.click(); // 调出来第一个面板
  // tool-tip_wrapper__1lKlz
  // - 第一个是品牌+车系的弹窗
  // - 第二个是车型的弹窗
  //   document.querySelectorAll(".tool-tip_wrapper__1lKlz")[0].click(); // 调出来第一个弹窗
  await sleep(SLEEP_TIME);
  //  if(brandIndex > 0) return
  // return
  // 获取品牌列表
  const brandlistLength = document.querySelectorAll(
    ".tool-tip_wrapper__1lKlz .jsx-2401233222.brand-list",
  )[0];
  if (!brandlistLength) {
    await sleep(SLEEP_TIME * 2);
  }

  const brandList = document
    .querySelectorAll(".tool-tip_wrapper__1lKlz .jsx-2401233222.brand-list")[0]
    .querySelectorAll(".jsx-2401233222.brand");
  // 模拟品牌点击
  const brandDomObj = brandList[brandIndex];
  if (!brandDomObj) {
    await saveJson(vehicleDatabase);
    return;
  }
  brandList[brandIndex].click();

  await sleep(SLEEP_TIME);
  while (
    document
      .querySelector(".tool-tip_wrapper__1lKlz .jsx-232230372.series-selector")
      ?.textContent?.includes("加载中")
  ) {
    await sleep(SLEEP_TIME);
  }
  // 品牌下有多少的车系
  const seriesList = document.querySelectorAll(
    ".tool-tip_wrapper__1lKlz .jsx-232230372.series-selector p.jsx-232230372",
  );

  //   const seriesLength = seriesList.length
  const seriesObj = seriesList[seriesIndex];
  if (seriesObj) {
    seriesList[seriesIndex].click(); // 模拟车系车系点击
    seriesIndex++;
  } else {
    // 挡车系不存在的时候，切换品牌
    brandIndex++;
    seriesIndex = 0;
    seriesList[seriesIndex].click()
    console.log(seriesIndex, vehicleDatabase);
    await saveJson(vehicleDatabase);
    vehicleDatabase = {}
    return task();
  }
  await sleep(SLEEP_TIME);
  //  模拟点击车型
  const mockModelInput = document.querySelectorAll(
    ".tw-relative.car-selector_selector__2E02F",
  )[1];
  mockModelInput.click();
  await sleep(SLEEP_TIME);
  // 获取已填入的品牌+车型
  const brandSeries = document
    .querySelectorAll(".tw-relative.car-selector_selector__2E02F")[0]
    .querySelector("input").value;
  vehicleDatabase[brandSeries] = [];
  // 获取车型列表
  const modelList = document
    .querySelectorAll(".tool-tip_wrapper__1lKlz")[1]
    .querySelectorAll("li");
  while (
    document
      .querySelectorAll(".tool-tip_wrapper__1lKlz")[1]
      .innerText.includes("加载中")
  ) {
    await sleep(SLEEP_TIME);
  }
  for (let i = 0; i < modelList.length; i++) {
    // modelList[i].click()
    const modelNamePrice = modelList[i].innerText.replace(/\n/g, "/");
    vehicleDatabase[brandSeries].push(modelNamePrice);
  }
  console.log(Object.keys(vehicleDatabase).length);
  task();
};

task();

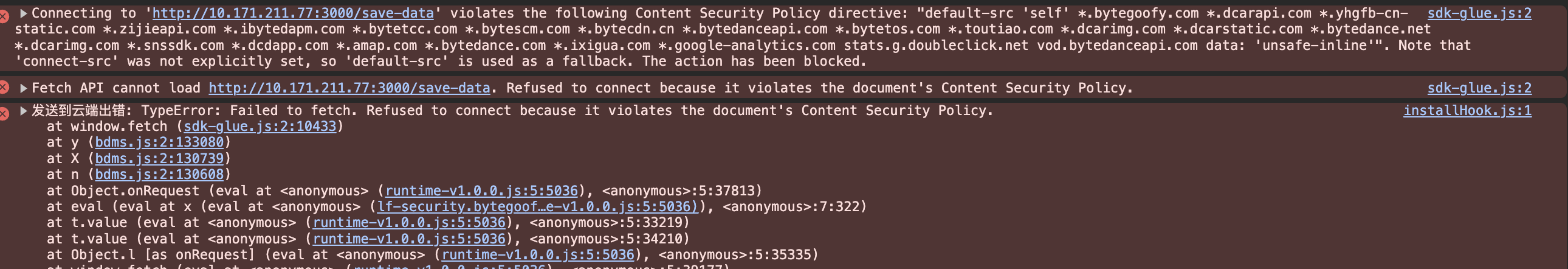

执行之后，不出意外就报错了，触发了浏览器的CSP策略。 alt text

解决方案

方案一：通过修改浏览器CSP + mix content来解决

关闭浏览器mix content策略

text

open -na "Google Chrome" --args \
  --user-data-dir=/tmp/chrome-insecure-profile \
  --disable-web-security \
  --allow-running-insecure-content

修改浏览器网站的CSP策略，修改文件 content

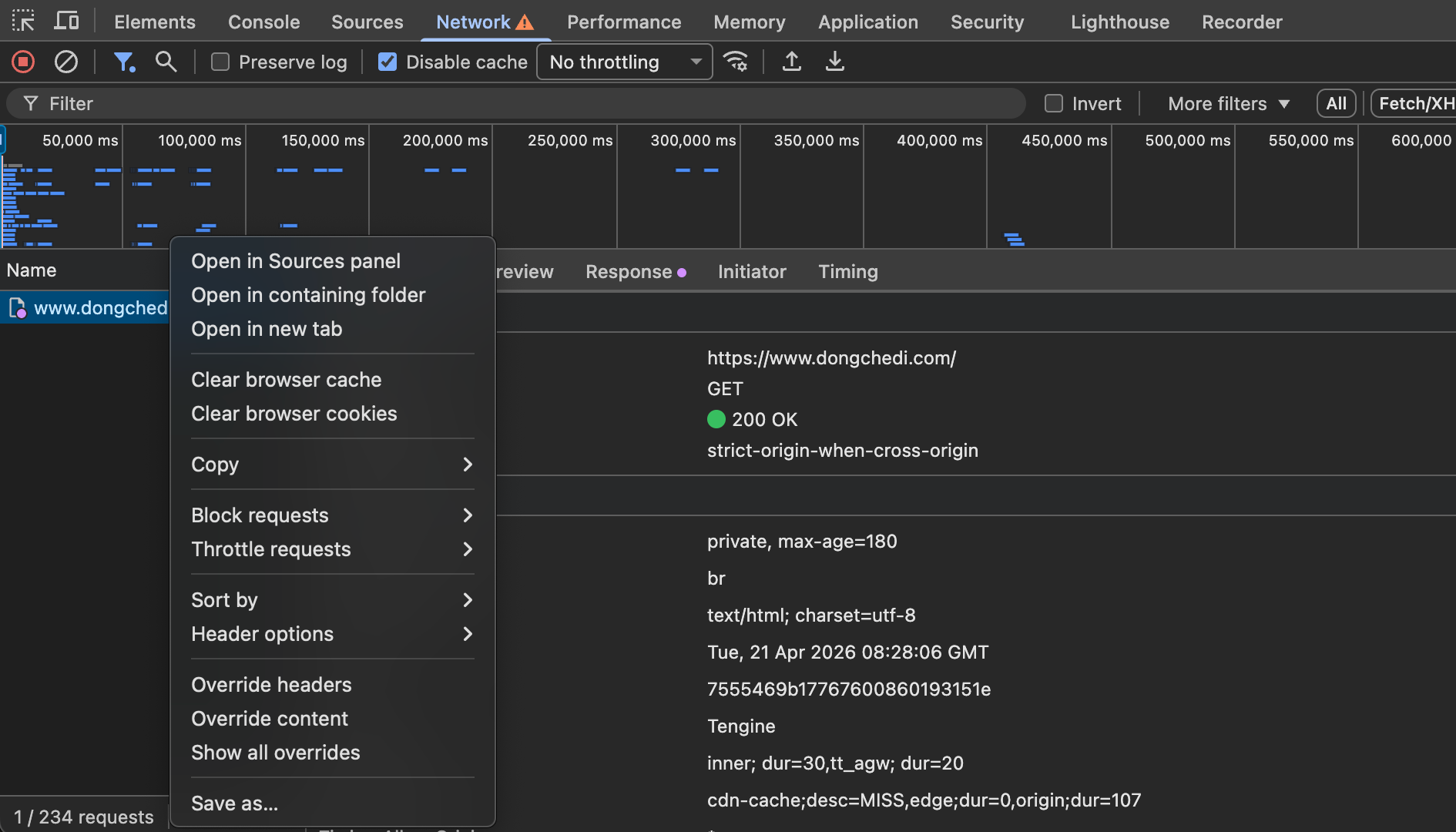

STEP1 打开浏览器的开发者工具，新建文件夹

alt text

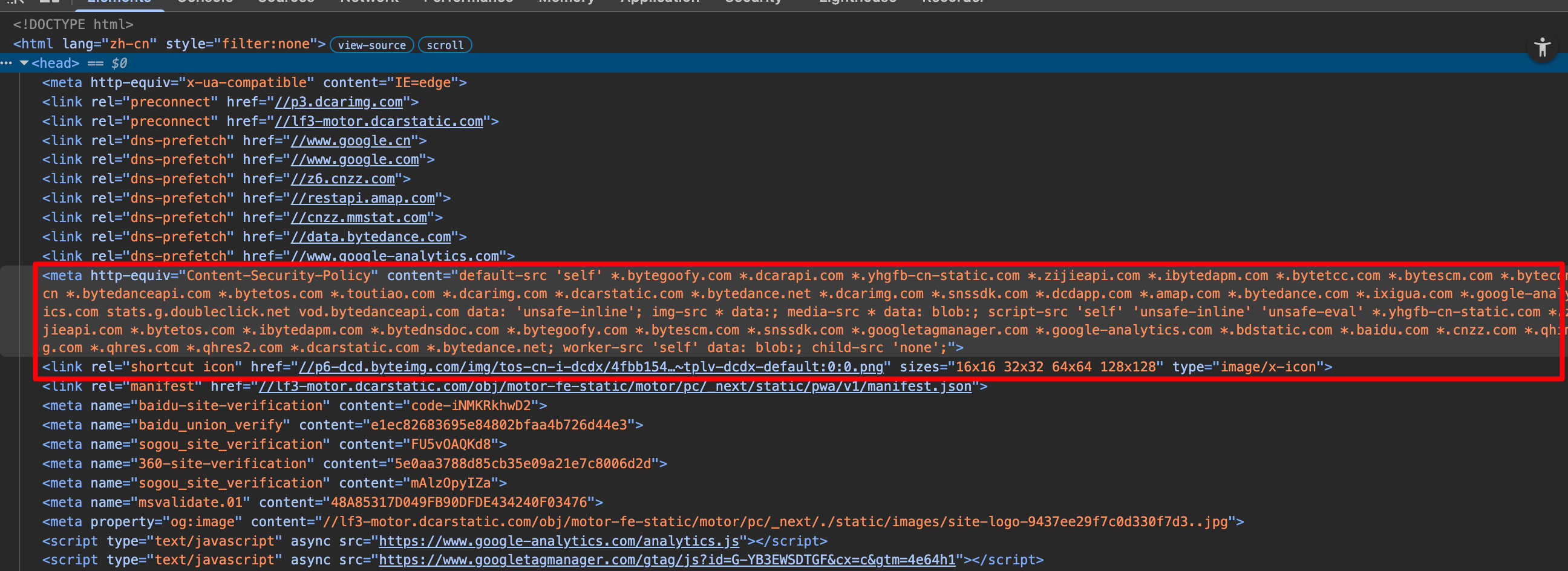

STEP2 搜索 Content-Security-Polic关键词，删除（ps: 当文件真正加载到本地，再去删除这段代码是无效的，由于浏览器已将CSP规则加载至渲染进程内存，通过开发者工具手动删除HTML中的meta标签无法撤销已生效的安全策略。为绕过限制，使用--disable-web-security启动浏览器，或利用Charles/Fiddler代理技术。）

alt text

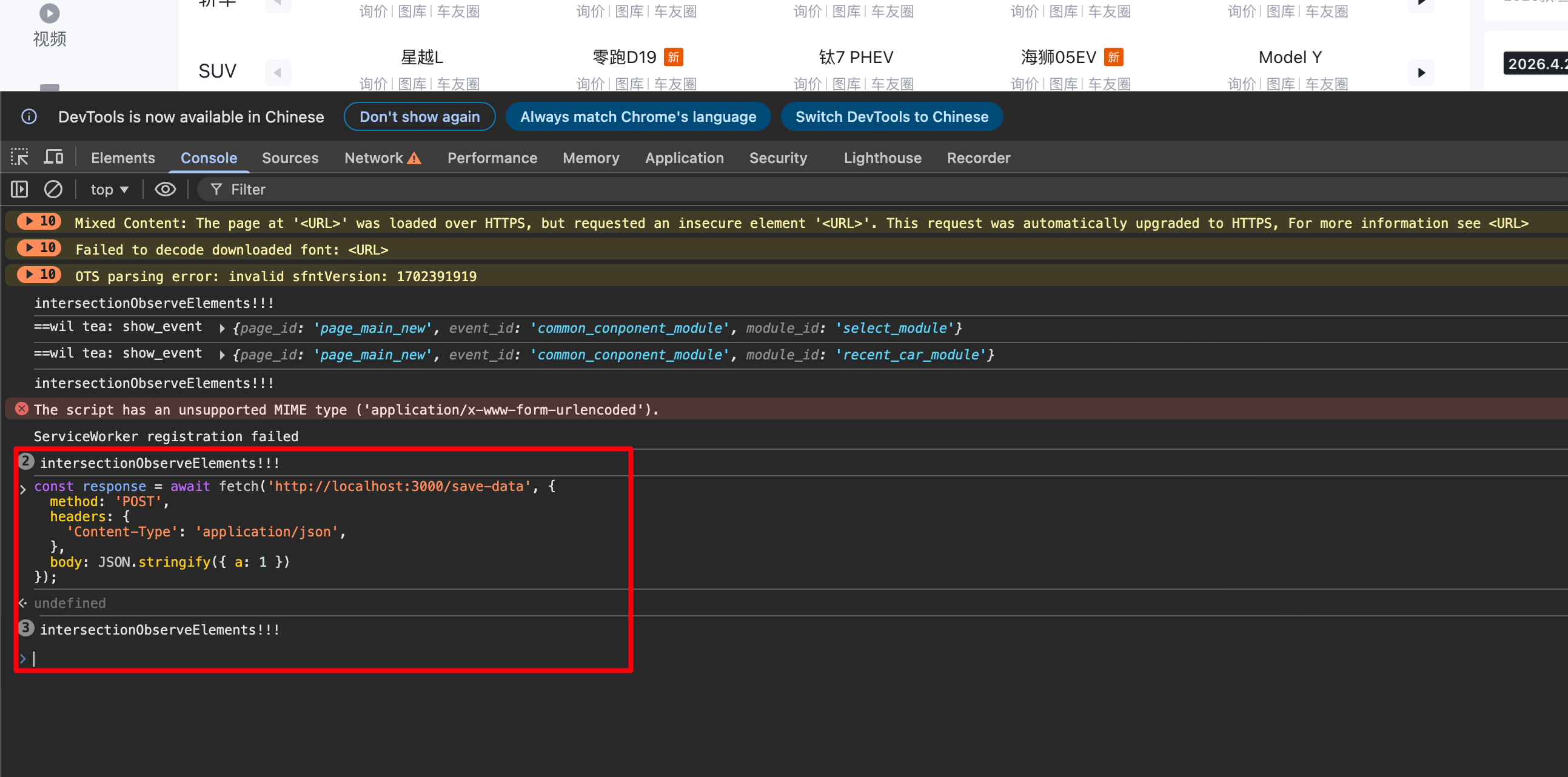

STEP3 将代码写到控制到测试，一把过

alt text

方案二：通过正向代理来解决

做一个代理服务，将 懂车帝 所有资源都代理到本地
proxy.js

const http = require("http");
const https = require("https");
const { URL } = require("url");

const PORT = 8089;
const API_TARGET_HOST = "10.171.211.77";
const API_TARGET_PORT = 3000;
let lastTargetOrigin = null;
const HOP_BY_HOP_HEADERS = new Set([
  "connection",
  "keep-alive",
  "proxy-authenticate",
  "proxy-authorization",
  "te",
  "trailers",
  "transfer-encoding",
  "upgrade",
]);

const removeCspHeaders = (headers) => {
  const next = { ...headers };
  delete next["content-security-policy"];
  delete next["content-security-policy-report-only"];
  return next;
};

const parseCookies = (cookieHeader) => {
  const out = {};
  const raw = String(cookieHeader || "");
  if (!raw) return out;
  for (const part of raw.split(";")) {
    const idx = part.indexOf("=");
    if (idx === -1) continue;
    const key = part.slice(0, idx).trim();
    const value = part.slice(idx + 1).trim();
    if (!key) continue;
    out[key] = value;
  }
  return out;
};

const appendSetCookie = (headers, cookie) => {
  const existing = headers["set-cookie"];
  if (!existing) {
    headers["set-cookie"] = [cookie];
    return;
  }
  if (Array.isArray(existing)) {
    headers["set-cookie"] = [...existing, cookie];
    return;
  }
  headers["set-cookie"] = [existing, cookie];
};

const filterRequestHeaders = (headers) => {
  const next = {};
  for (const [key, value] of Object.entries(headers || {})) {
    const lower = key.toLowerCase();
    if (HOP_BY_HOP_HEADERS.has(lower) || lower === "host") continue;
    next[key] = value;
  }
  return next;
};

const filterResponseHeaders = (headers) => {
  const next = {};
  for (const [key, value] of Object.entries(headers || {})) {
    if (HOP_BY_HOP_HEADERS.has(String(key).toLowerCase())) continue;
    next[key] = value;
  }
  return next;
};

const getTargetBaseFromReferer = (referer, port) => {
  if (!referer) return null;
  try {
    const refUrl = new URL(referer);
    if (refUrl.hostname !== "localhost") return null;
    if (String(refUrl.port || (refUrl.protocol === "https:" ? 443 : 80)) !== String(port)) return null;
    return parseTargetUrl(refUrl.pathname);
  } catch {
    return null;
  }
};

const rewriteLocationHeader = (location, currentTargetBase, port) => {
  if (!location || !currentTargetBase) return location;
  try {
    const absolute = new URL(location, currentTargetBase.origin);
    if (absolute.origin !== currentTargetBase.origin) return location;
    return `http://localhost:${port}/${absolute.href}`;
  } catch {
    return location;
  }
};

const sendJson = (res, statusCode, payload) => {
  res.writeHead(statusCode, { "Content-Type": "application/json; charset=utf-8" });
  res.end(JSON.stringify(payload));
};

const forwardToSaveServer = (clientReq, clientRes) => {
  const options = {
    hostname: API_TARGET_HOST,
    port: API_TARGET_PORT,
    path: "/save-data",
    method: "POST",
    headers: {
      ...filterRequestHeaders(clientReq.headers),
      host: `${API_TARGET_HOST}:${API_TARGET_PORT}`,
    },
  };

  const upstreamReq = http.request(options, (upstreamRes) => {
    const headers = filterResponseHeaders(upstreamRes.headers);
    clientRes.writeHead(upstreamRes.statusCode || 500, headers);
    upstreamRes.pipe(clientRes);
  });

  upstreamReq.on("error", (error) => {
    sendJson(clientRes, 502, { error: `save-data upstream error: ${error.message}` });
  });

  clientReq.pipe(upstreamReq);
};

const parseTargetUrl = (urlPath) => {
  const raw = String(urlPath || "/").replace(/^\/+/, "");
  if (!raw) return null;
  if (!/^https?:\/\//i.test(raw)) return null;
  try {
    return new URL(raw);
  } catch {
    return null;
  }
};

const proxyWebPage = (clientReq, clientRes, targetUrl) => {
  lastTargetOrigin = targetUrl.origin;
  const requester = targetUrl.protocol === "https:" ? https : http;
  const options = {
    protocol: targetUrl.protocol,
    hostname: targetUrl.hostname,
    port: targetUrl.port || (targetUrl.protocol === "https:" ? 443 : 80),
    method: clientReq.method,
    path: `${targetUrl.pathname}${targetUrl.search}`,
    headers: {
      ...filterRequestHeaders(clientReq.headers),
      host: targetUrl.host,
    },
  };

  const upstreamReq = requester.request(options, (upstreamRes) => {
    const stripped = removeCspHeaders(upstreamRes.headers);
    const headers = filterResponseHeaders(stripped);
    if (headers.location) {
      const targetBase = new URL(targetUrl.origin);
      headers.location = rewriteLocationHeader(headers.location, targetBase, PORT);
    }
    appendSetCookie(
      headers,
      `proxy_target=${encodeURIComponent(targetUrl.origin)}; Path=/; SameSite=Lax`,
    );
    headers["access-control-allow-origin"] = "*";
    clientRes.writeHead(upstreamRes.statusCode || 500, headers);
    upstreamRes.pipe(clientRes);
  });

  upstreamReq.on("error", (error) => {
    sendJson(clientRes, 502, { error: `proxy upstream error: ${error.message}` });
  });

  clientReq.pipe(upstreamReq);
};

const server = http.createServer((req, res) => {
  if (req.method === "OPTIONS") {
    res.writeHead(204, {
      "Access-Control-Allow-Origin": "*",
      "Access-Control-Allow-Methods": "GET,POST,OPTIONS",
      "Access-Control-Allow-Headers": "Content-Type, Authorization",
    });
    res.end();
    return;
  }

  if (req.url === "/") {
    sendJson(res, 200, {
      usage: [
        "打开目标网页: http://localhost:8089/https://example.com/path?query=1",
        "页面内上报接口: POST /save-data (会转发到 10.171.211.77:3000/save-data)",
      ],
    });
    return;
  }

  if (req.url === "/save-data" && req.method === "POST") {
    forwardToSaveServer(req, res);
    return;
  }

  let targetUrl = parseTargetUrl(req.url);
  if (!targetUrl) {
    const base = getTargetBaseFromReferer(req.headers.referer, PORT);
    if (base) {
      try {
        targetUrl = new URL(req.url, base.origin);
      } catch {
        targetUrl = null;
      }
    }
  }

  if (!targetUrl) {
    const cookies = parseCookies(req.headers.cookie);
    if (cookies.proxy_target) {
      try {
        const origin = decodeURIComponent(cookies.proxy_target);
        targetUrl = new URL(req.url, origin);
      } catch {
        targetUrl = null;
      }
    }
  }

  if (!targetUrl && lastTargetOrigin) {
    try {
      targetUrl = new URL(req.url, lastTargetOrigin);
    } catch {
      targetUrl = null;
    }
  }

  if (!targetUrl) {
    sendJson(res, 400, {
      error: "invalid target url. open page via /https://your-target-url first",
      hint: `example: http://localhost:${PORT}/https://example.com/path`,
    });
    return;
  }

  proxyWebPage(req, res, targetUrl);
});

server.listen(PORT, () => {
  console.log(`Proxy running at http://localhost:${PORT}`);
  console.log("Open page via: http://localhost:8089/https://目标网址");
});

这样就可以通过正向代理来解决CSP和mix content策略问题了。

方案三，抓取懂车帝接口

我擦，这个是后来才知道，shit 💩~

获取品牌接口，接口
获取车系接口，接口
获取车型接口，接口

参考文档

如何通过Chrome浏览器管理页面的内容安全策略

CSP Evaluator 评测软件

在本地替换 Web 内容和 HTTP 响应标头

使用严格的内容安全政策 (CSP) 缓解跨站脚本攻击 (XSS)

抓取懂车帝车型数据 ​

排查思路 ​

模拟用户点击获取数据 ​

具体实现 ​

使用 HTTP 请求来保存数据 ​

解决方案 ​

方案一：通过修改浏览器CSP + mix content来解决 ​

方案二：通过正向代理来解决 ​

方案三，抓取懂车帝接口 ​

相关代码 ​

参考文档 ​

抓取懂车帝车型数据

排查思路

模拟用户点击获取数据

具体实现

使用 HTTP 请求来保存数据

解决方案

方案一：通过修改浏览器CSP + mix content来解决

方案二：通过正向代理来解决

方案三，抓取懂车帝接口

相关代码

参考文档
